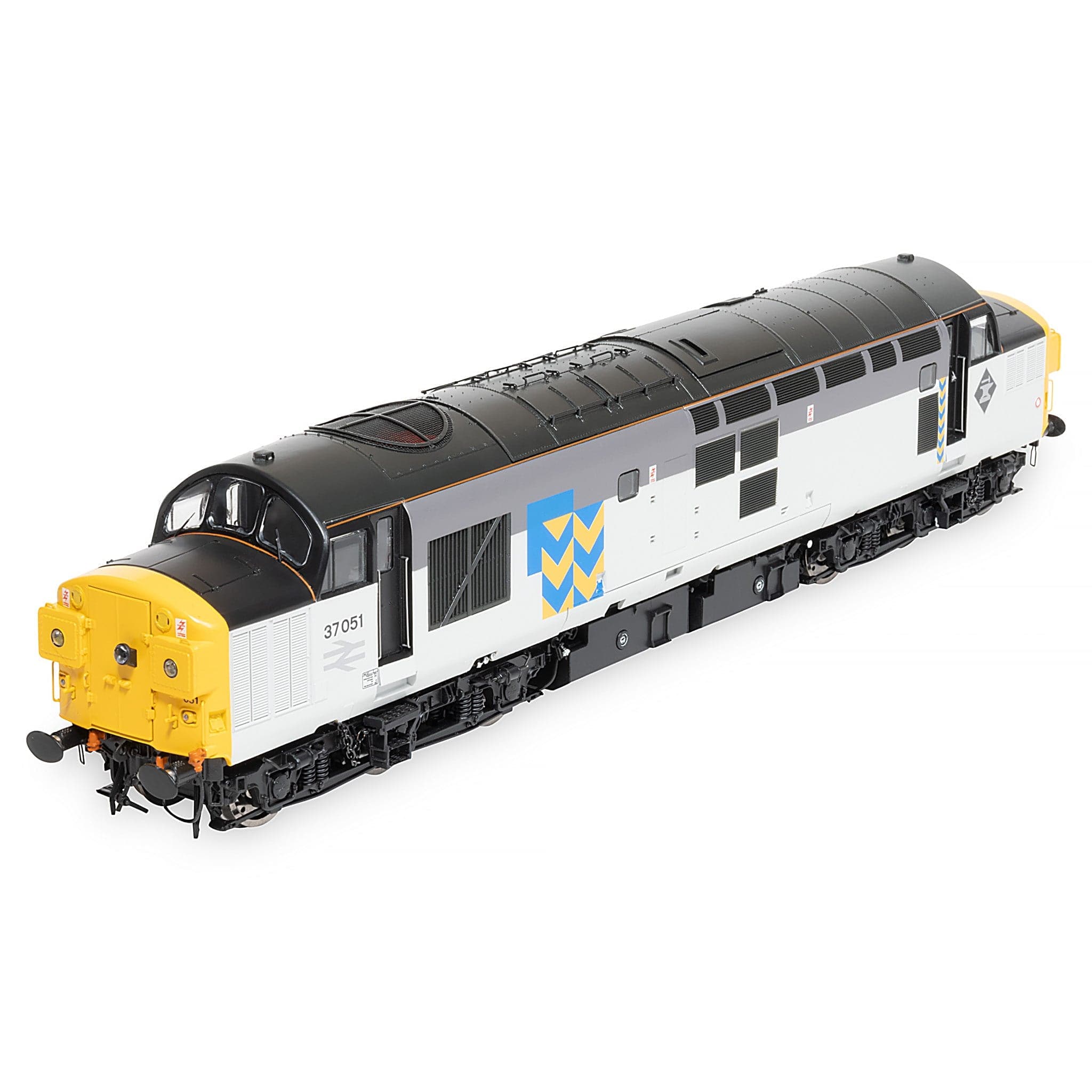

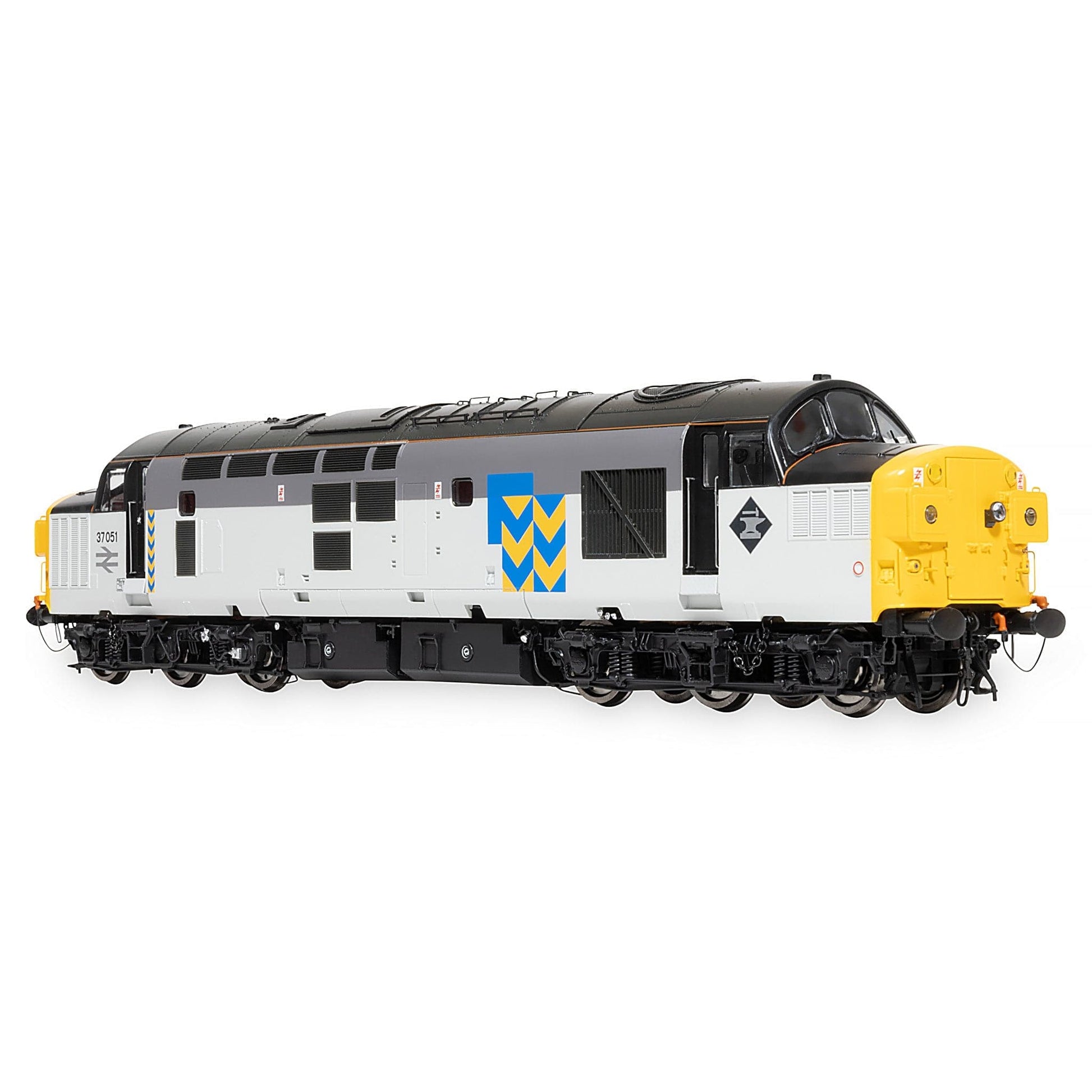

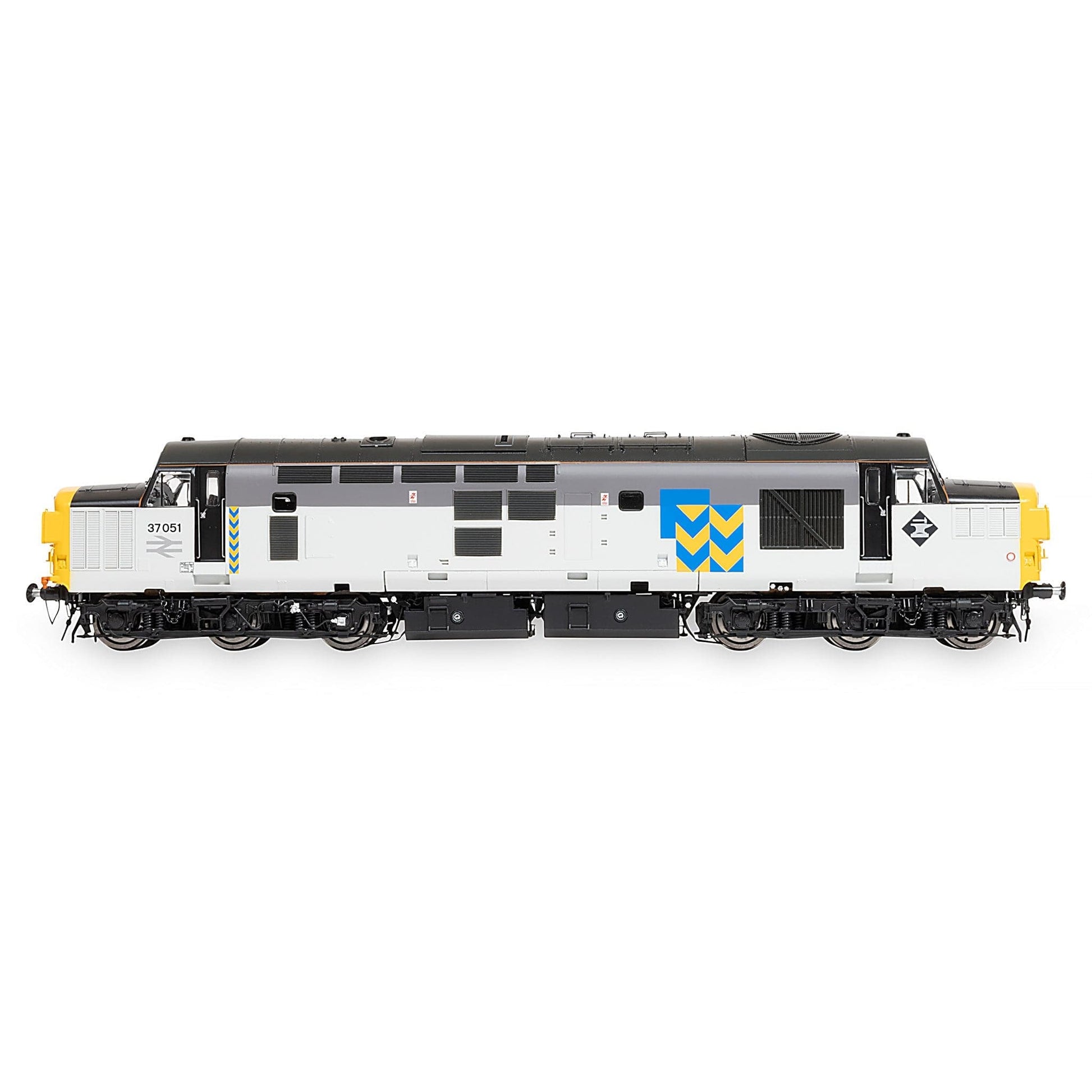

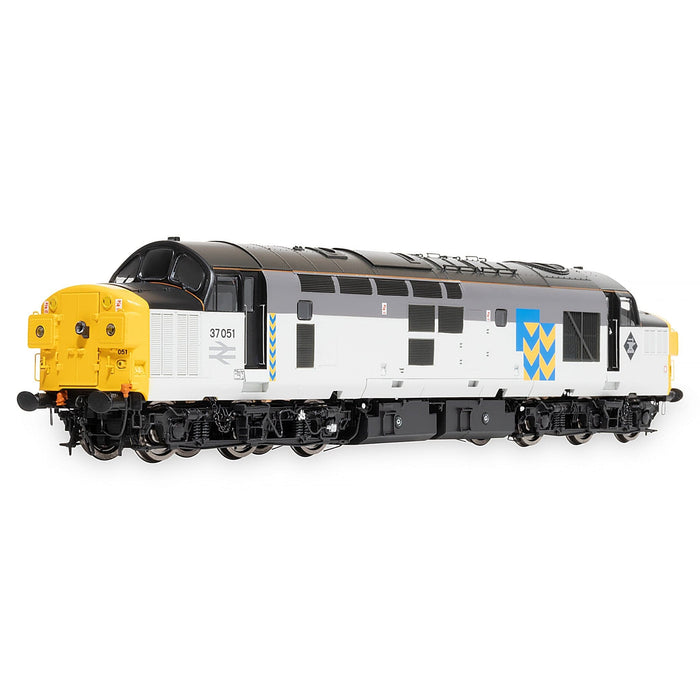

Class 37/0 - 37051
-
Late 1980s/early 1990s period
-
Railfreight Metals triple-grey
-
Split headcode nose with plated headcode boxes
-
Scottish 'car style' headlight (fully working)
-
Original nose grilles
-
Cutaway bufferbeam cowling with oval buffers
-
Steam heat bufferbeam configuration with air/vac/control/MW pipes
-
Original windscreens with as built cab layout
-
Intermediate single-riveted roof with boiler exhaust and large cab roof vent
-
Fabricated bogies
-
Original fuel tank configuration
-
Late EE cantrail grilles
-
Plated bodyside water filler and associated steps (one left unplated)
- Optional miniature snowploughs included
Common Features:
- Highly detailed OO scale model, 1:76.2
- Heavy die-cast metal chassis
- Accurate tumbleholme, nose, cab roof and cantrail curves taken from 3D Laser scan and extensive surveys
- Timeframe specific details, including but not limited to;
- Bogies (Fabricated and three variations of Cast)
- Fuel tanks (As built and with later smooth-sided long range fuel tank)
- Early Class 37/0 features frost grille, boiler filler panel and access steps
- Early Class 37/0 features illuminated split headcode displays with a selection of different four-character headcodes
- Class 37/6 have operational WIPAC light clusters and top headlight and numerous different nose slides all including multiple working socket
- Three styles of buffer: large round Oleo, oval and squared oval
- Three styles of nose grilles: as built, refurbished ‘split’ and refurbished ‘single piece’
- Boiler exhaust, and two styles of plated boiler panel
- With or without bufferbeam skirts
- With or without cab roof vents and bodyside windows
- Nose and roof aerials and antennas (where applicable)
- Three styles of windscreen: standard, centre toughened and all toughened
- Three styles of cab interior: as built, refurbished and modern DRS locos
- Four bufferbeam variations with different piping configurations
- Door kickplates where applicable
- Multiple body and nose slides to accurately represent almost every member of the class, including three variations of cantrail grille: early EE (for D6700-D6704), later EE and RSH
- Four roof styles: Original double riveted, single riveted, welded and welded with antennas
- Separately applied etched metal and high fidelity plastic detail parts, including grab handles, aerials, steps, wipers, nameplates, crests and more.
- Etched metal door kickplates (where applicable), ‘frost’ grille (where applicable) & super fine etched metal roof grille
- Scale width wire handrails
- Turned brass roof-mounted horns on centre headcode examples
- Full underbody tank detail with brackets and pipework
- Bogies feature separate footsteps, etched footsteps, brake cylinders, speed recorder, end brake rigging and very fine brake chain
- Brake blocks on trucks (bogies) in line with wheels (can be moved for EM/P4 gauges)
- Numerous other locomotive-specific details yet to be revealed!
- RP25-110 profile OO gauge wheels with fine scale ‘drop in’ EM (18.2mm gauge) and P4 (18.83mm gauge) wheels available separately
- Accurate high-fidelity miniature snowploughs
- Fully sprung metal buffers, extra-fine factory-installed pipework and screw couplings
- Correct height mini-tension-lock couplers with NEM socket as well as a fully detailed bufferbeam
- Provided DCC ready [21Pin MTX Socket] or Factory DCC Sound Fitted [ESU LokSound 5]
- Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound
- DCC Sound Versions include;
- ESU LokSound V5 DCC Chip
- Customised Dual-Speaker Technology with;
- Large EM2 Style Bass Speaker
- Smaller 'iphone' style cube for higher frequencies
- High Performance traction, to include;
- High-quality five-pole motor with two flywheels
- Metal Helical Gear box for maximum performance and slow speed running
- Gearing arranged so locomotive can achieve a scale top speed of 100 mph (160 km/h)
- DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running
- All wheel drive and all wheel pickup
- Fully detailed Lighting Pack, including:
- Directional lighting on DC and DCC
- Fully functional Headlights per prototype
- Engine Bay Lighting (with visible Prime Mover)
- WIPAC light clusters where appropriate with day and night-time settings
- Separately switched cab lighting and illuminated, details driver’s console, auto off on movement
- Switchable red tail lights
- RP25-110 wheels OO wheels with provision for re-gauging to p4 and EM gauge
- Minimum Radius 438mm (2nd Radius Set-track)
