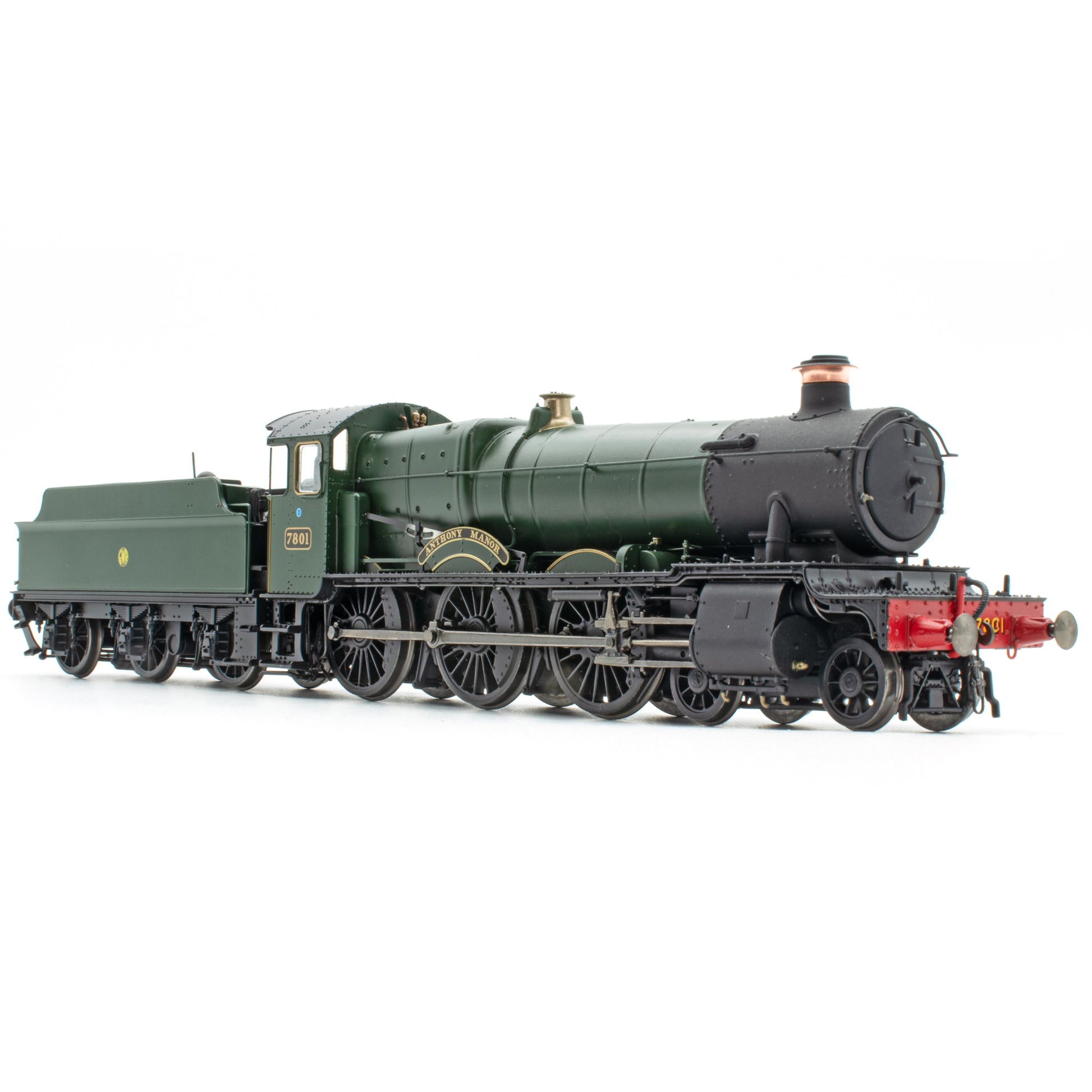

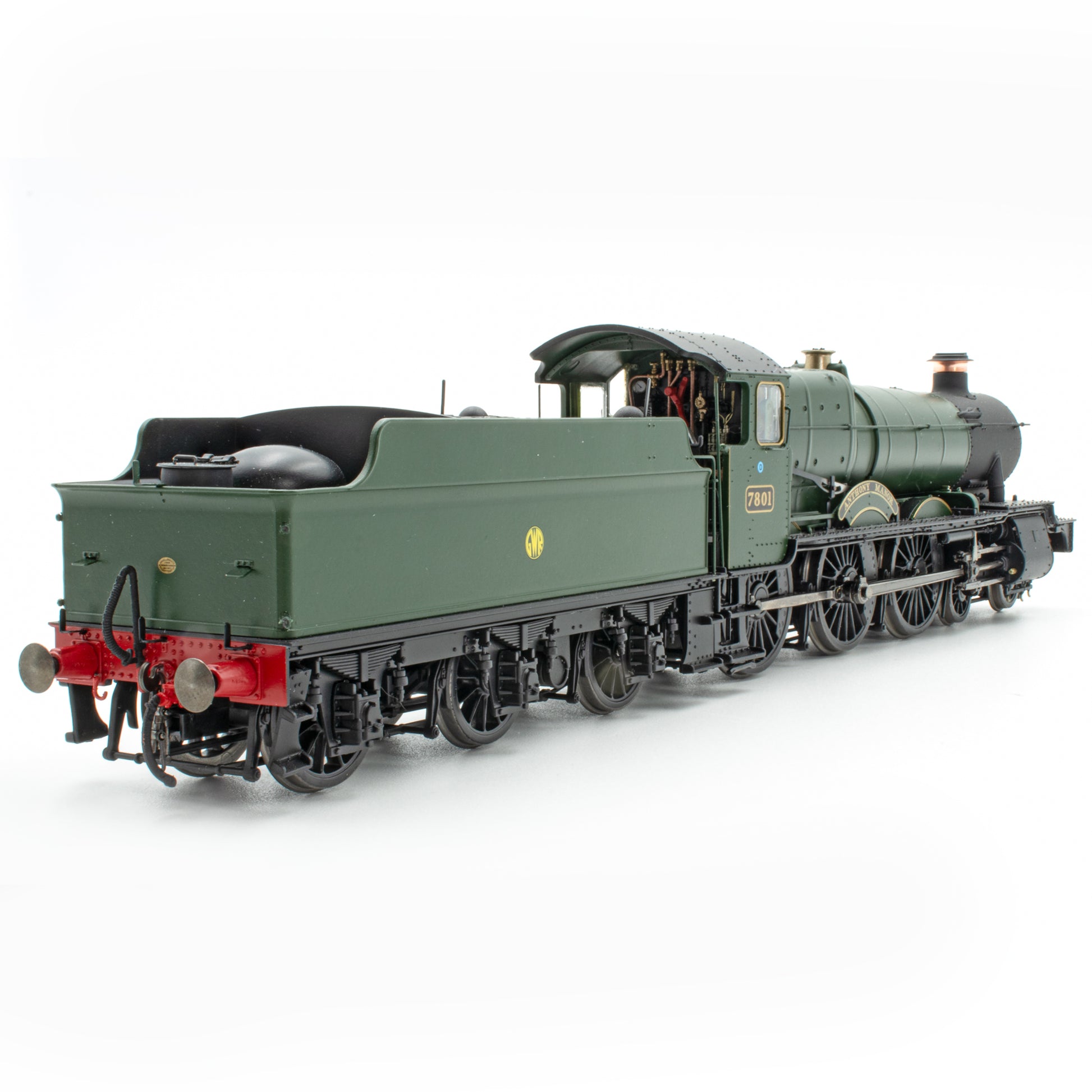

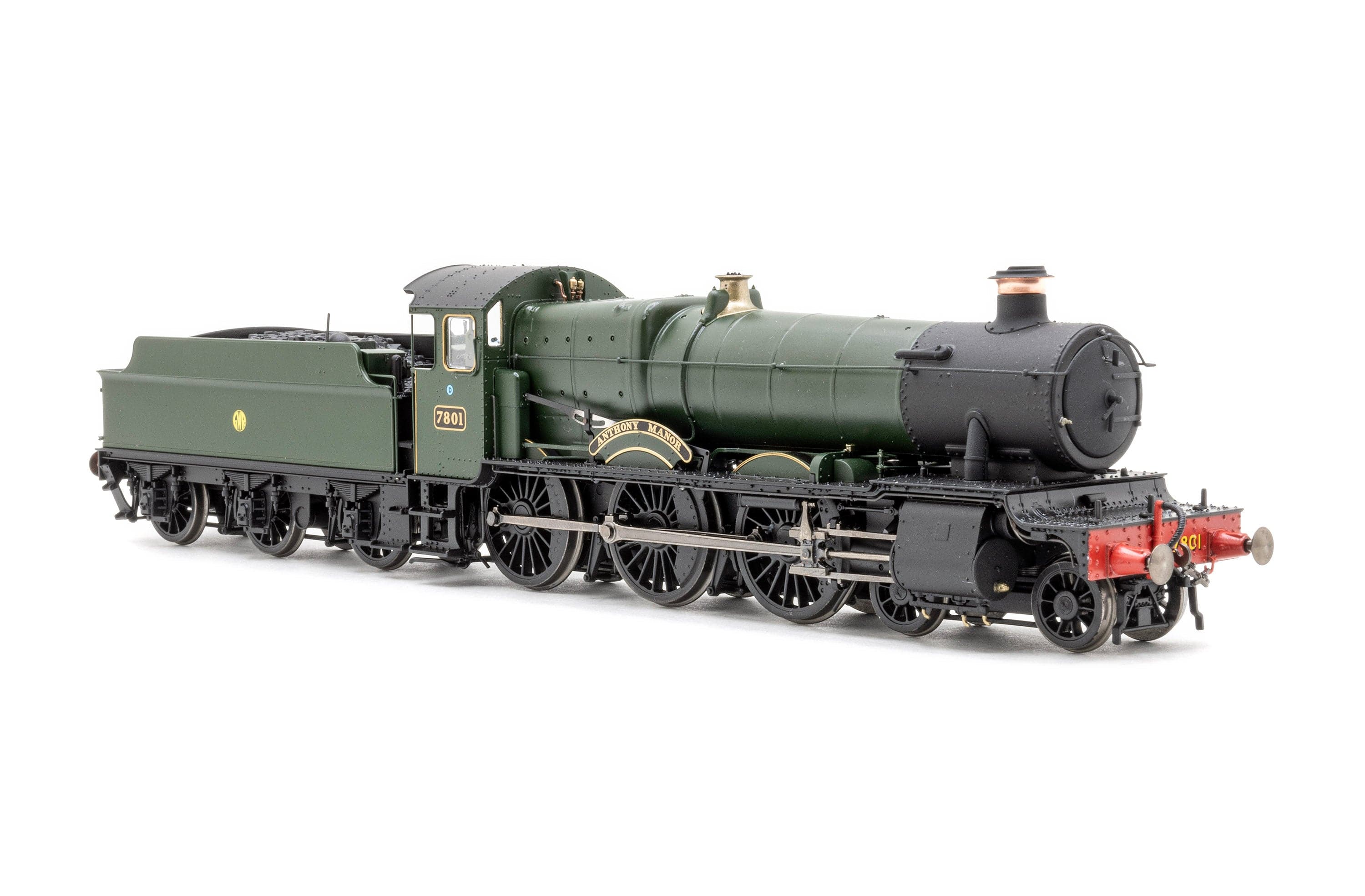

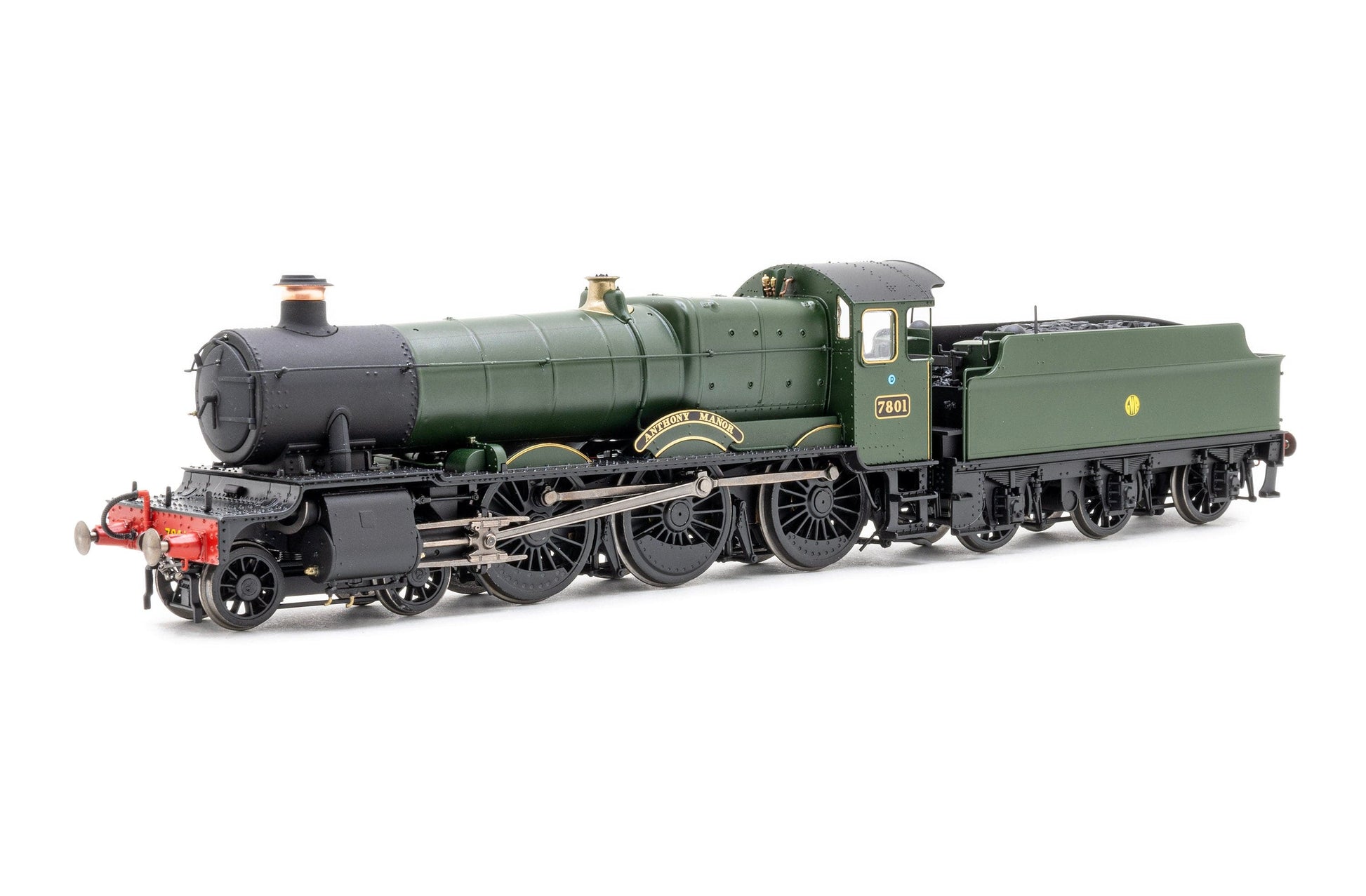

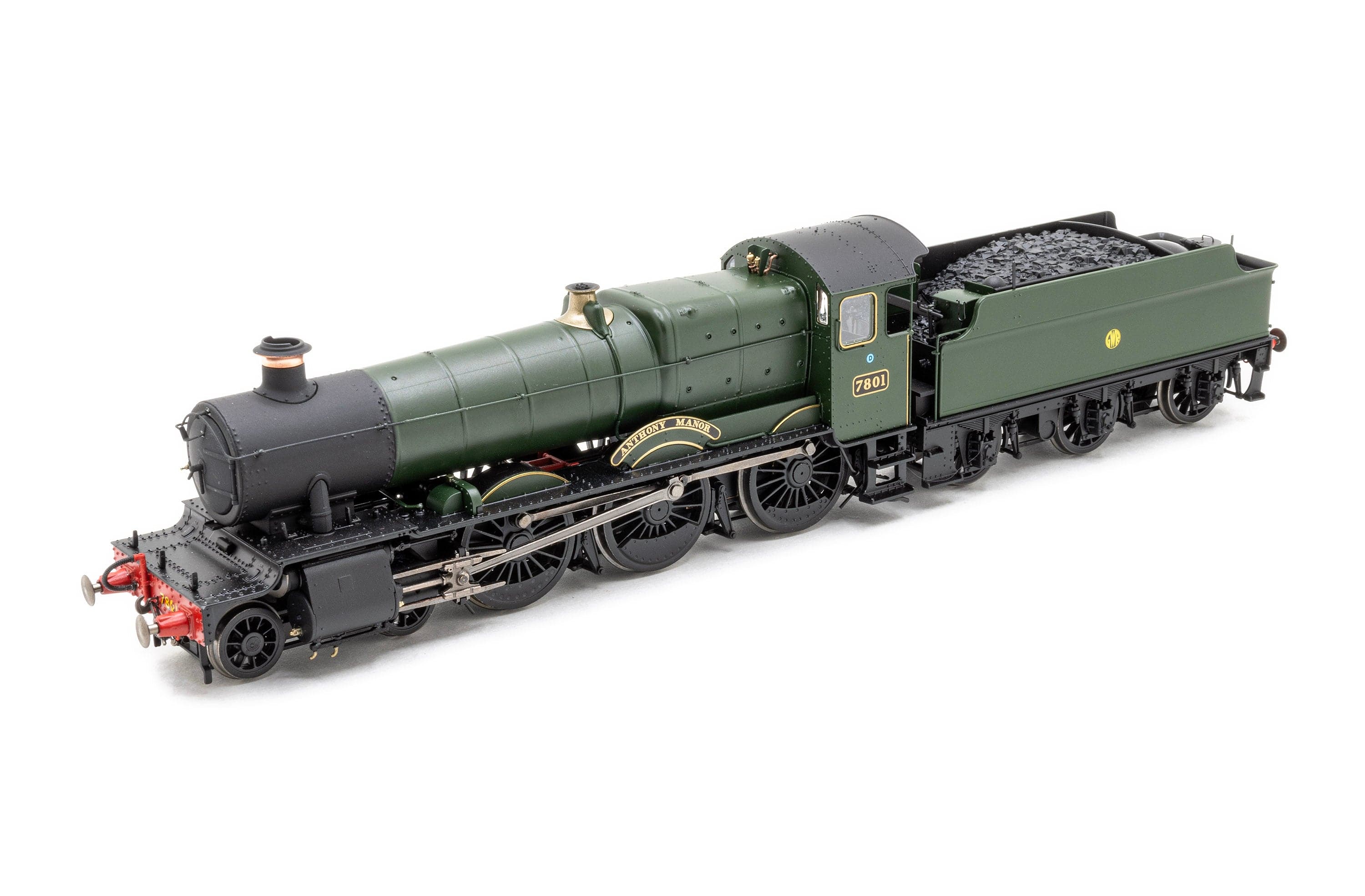

7801 – ‘Anthony Manor' GWR 7800
7801 – ‘Anthony Manor' GWR 7800
This item was delivered in a Previous run ( ) from this range and is no longer available new from accurascale
Detailed Description
Detailed Description
7801 – ‘Anthony Manor '
- GWR - Great Western Railway - Plain Green with Monogram
- Original Chimney
- Flush Tender Body
- Narrow hornplates
Common Features:
- Highly-detailed OO gauge model, 1:76.2 scale on 16.5mm track
- Based on 3D scan of 7808 Cookham Manor and full works drawings provided by Great Western Society, Didcot
- Surveys undertaken with assistance of Erlestoke Manor Fund, Dinmore Manor Loco Ltd and Tyseley Locomotive Works
- Smokebox and chimney correctly represents as-built GWR condition or post-1952 BR redraughting
- Fully-detailed cab interior with many separate parts
- Die-cast metal chassis, running plate and body
- Scale width wire handrails
- Etched metal/plastic and lost wax detail parts, incl. grab handles, steps, drain cocks, etc
- Etched metal pre-painted name and numberplates
- High-fidelity dummy screw couplings
- Fully sprung metal buffers and factory-installed pipework
- Tapered or straight buffer housings where applicable
- Brake blocks in line with wheels
- Front mini-tension lock coupler can be replaced by accurate front pony truck moulding
Tender Details:
- Churchward 3,500 gal tender with numerous variations including riveted and flush sides, narrow or wide hornplates, three different styles of spring hanger and underframe-mounted water scoop
- Fully sprung metal buffers, factory-installed pipework and high fidelity dummy screw couplings
- Early tapered, tapered or straight buffer housings where applicable
- Optional overhead warning plate bracket on late-BR examples
- Kinetic NEM coupler mounts on tender at correct height with mini-tension-lock couplers
- DCC decoder socket in tender
- Choice of lift out sections: empty or simulated ‘coal’ load
DCC / Electronic Features:
- Very high-quality 3-pole motor with flywheel, low starting voltage and smooth power delivery
- DCC ready or factory-installed DCC Sound options
- DCC Sound locomotives have speaker mounted in smokebox and speaker in tender
- PowerPack capacitor bank for uninterrupted power and sound
- Flickering firebox light (synchronised with sound on DCC installed models)
- Electrical pickup from all tender and locomotive driving wheels
Traction Features:
- Minimum Radius 438mm (2nd Radius Set-track)
- Die-cast metal chassis, running plate and body with sprung centre driving axle
- Metal Helical Gear box for maximum performance and slow speed running
- Gearing arranged so locomotive can achieve a scale top speed of 90 mph (145 km/h)
- RP25-110 profile OO gauge wheels
Specification
Specification
Lighting & DCC
Lighting & DCC
Common Features
Common Features
Customer Reviews
Not my first manor. These are great. Streets ahead of any other
Really pleased with my model.
In my opinion one of the best models I bought in 2023. Especially given that some other manufacturers want over £200 for less detailed models. So GREAT PRICE! I was actually that impressed I in fact bought four of these Manor class locomotives. And to think it is Accurascale first steam locomotive class to be modeled. Great work Accurascale! 😁😁😁👍
Yes, yet another excellent model from accurascale. Looks good, runs excellently good and makes you feel bloomin good!!! Well done all.
GWR Anthony Manor is a little gem. It is quite powerful and holds to my rather dodgy rails well for a steamer. I was a little disappointed that it didnt work with a Hornby HM7000 DCC bluetooth sound decoder (Next 18) but never mind I am very pleased with it.
My first Accurascale locomotive purchase was Brush ABB Class 92 electric ' Debussy' which works with a Hornby HM7000 DCC 21pin bluetooth sound decoder I have also pre-ordered an HST locomotive from you which I hope will be as good as the Debussy. Love your products for their quality and presentation (especially background information). regards Matthew Ridgeon
The Accurascale manors are very nice model and works well and have had a good running but you need to run the models in just to make sure you conform to the suppliers requirements and to make sure the brushes bed in correctly in both directions, this model is very accurate and is an excellent example and you won’t ever be disappointed with your purchase. Richard from Gloucestershire
This is my second “Manor” and it doesn’t disappoint. So much detail, just waiting for the crew now !
This would probably have been a 5 star review, but for one thing - on un-boxing the model I found one of the front buffers rolling around loose in the packaging. A loose paint chip indicated that this had not just been loosely fitted but had been knocked and broken. Given the excellent quality of the packaging, both of the loco box and the shipping box, I can only surmise that this happened at the point of boxing up at the manufacturer. Fortunately, the damage is not too severe - the buffer itself appears in order, and there appears to be no distortion of the model - so it is well within my modelling skills to effect a repair. But it is very disappointing to receive a damaged model when everything about the piece screams quality, and this delivered at an astonishing price point compared to other manufacturers. Given the damage, which I haven’t had the time to try and resolve, I’ve only given the loco the briefest of tests to check it was operational. Seems fine mechanically, and an impressive weight, and it really looks the part. I hope this sort of thing is a rare occurrence, and I’ve just been unlucky. Minus 1 star for the damage, minus another for the disappointment.
The first version of Anthony Manor had to go back due to half a dozen faults with it. The replacement arrived and the first thing I notice was the chimney hanging off. On checking the gimmicky tender filler lid that was wonky on the first, I found this one was not affixed properly either. I cba to return this model again, I can glue the chimney on and replace the filler lid with something that has scale hinges. It's a noisy runner, even after 2+ hrs running in, though it has got better, and there is still a strange squeak. Thankfully it does start off smoothly with no sudden leaps. Buffer springs are next to useless, they are way too hard. On the plus side, the shade of green appears to be well done and the overall appearance captures the essence of the Manor very well, with nicely proportioned boiler and firebox. Customer service was also excellent when organising the returns of the first example.
Please investigate your QC with the factory, it spoils an otherwise superbly done model.
The attention to detail as astonishing, it looks superb and all for an incredible price. If you like GWR then definitely ad this loco to your collection
Receiving the package, opening the parcel are all part of the pleasure. All very well packaged, well presented box and the loco on inspection certainly didn't disappoint. The loco ran super smooth straight from the box and all was intact.
Thanks Accurascale.
