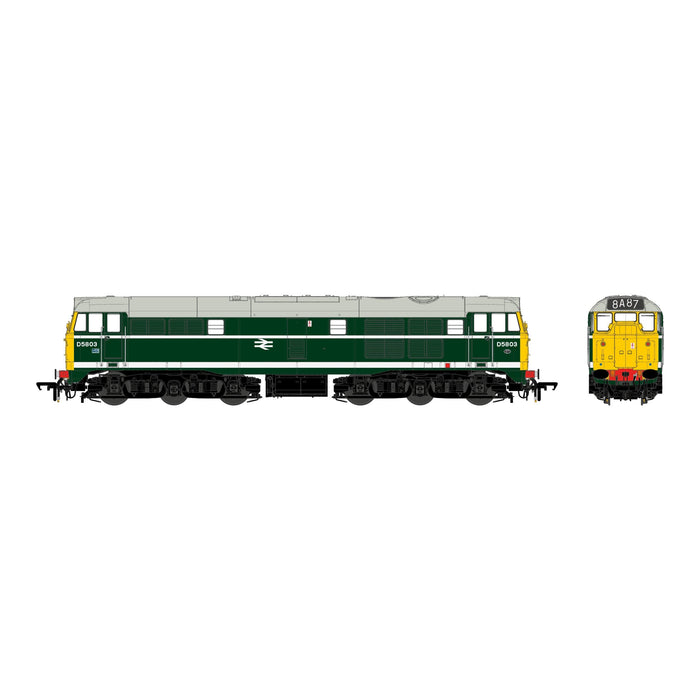

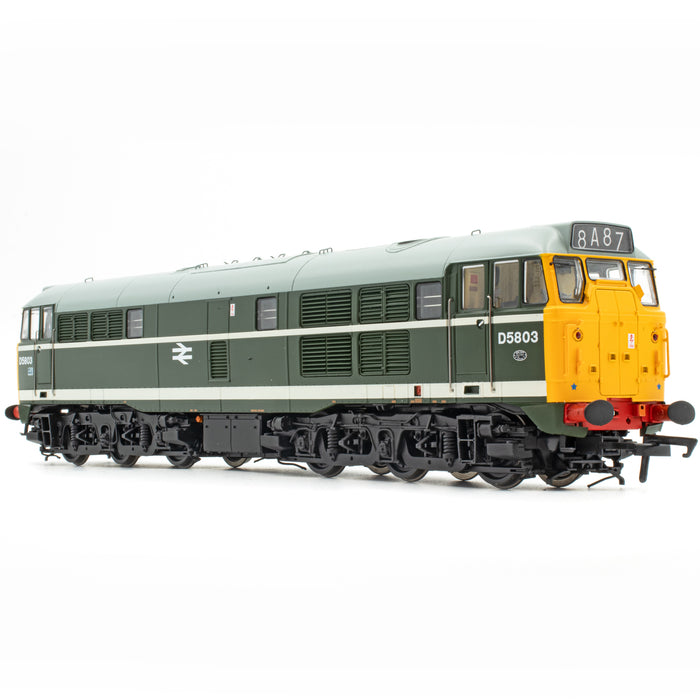

Class 31 - D5803

Class 31 - D5803

SKU ACC2737-5803
Availability:
in stock, ready to be shipped
Availability:
Out of stock
$324.00 - $514.00
$324.00
$324.00 - $514.00
$324.00
DCC: DCC Ready

CLASS 31 Common Features

  • Highly-detailed OO gauge model, 1:76.2 scale on 16.5mm track
  • Minimum Radius 438mm (2nd Radius Set-track)
  • Heavy Die-cast metal chassis
  • One truck (bogie) styles with separate footsteps, brake cylinders, speed recorder and end brake rigging
  • RP25-110 profile OO gauge wheels
  • Brake blocks on bogies in line with wheels
  • Scale width wire handrails
  • Etched metal/plastic detail parts, incl. grab handles, steps, wipers, etc.
  • Etched metal roof grille
  • Etched metal pre-painted nameplates, plaques and arrows (if applicable)
  • Accurate high-fidelity miniature snowploughs, chassis fitted
  • Full underbody battery box/air tank detail with pipework
  • Extra cab front details for Network Rail locomotives
  • Fully sprung buffers, multiple pipework variations and screw couplings
  • Kinetic NEM coupler mounts at correct height with mini-tension-lock couplers

Deluxe Features

  • All models feature a fully working, scale speed roof fan, that will run on DC and DCC., On DCC control, the fan speed is fully programmed to simulate accurate motion
  • All models feature  PowerPack supercapacitor Stay-Alive system for uninterrupted power and flicker free lighting and uninterruptible sound (works on DCC)

DCC Features

  • DCC ready [21-Pin MTX Socket]
  • Factory-Installed DCC Sound available with ESU LokSound V5 fitted with large  speaker and sugarcube style speaker, with large sound capsules for best possible sound (DCC Sound models only)
  • Wheel flange squeal sensor on DCC sound fitted locomotives for automatic flange squeal on sound programme

High Performance traction features;

  • High quality 5-pole motor with two large flywheels
  • Helical Gear box for maximum performance and slow speed running
  • Gearing arranged so locomotive can achieve a scale top speed of 90 mph (145 km/h)
  • Outer axles on bogies are driven (sprung dummy centre axle) and all wheel pickup

Fully detailed Lighting Pack features:

  • Directional lighting, DC and DCC
  • Lighting clusters with appropriate day and night-time settings
  • Switchable Red and white marker lights (red can be switched individual lights or both on)
  • Separately switched cab lighting and illuminated, driver’s desk with auto/off on movement

Customer Reviews

Based on 44 reviews
93%
(41)
7%
(3)
0%
(0)
0%
(0)
0%
(0)
R
Robert B.
Type 2 Brush Up

I already have 5544 in blue so was already aware of the superb quality and accuracy but a green version was always considered to support my fleet for 34G.
Having purchased 5674 based on having been once allocated to Finsbury Park I was disappointed that my research had let me down and the model was unsuitable for my period.
Accurascale agreed to correct my mistake, without question and swapped the model for one of 5803 with FYE and arrows of indecision. This will become 5610 which was a Finsbury Park resident.
The fit and finish of the model is superb and represent the prototype beautifully.
The running is smooth and silent with sound off. With sound on the model comes alive. It is wonderful and will look the part on a rake of six blue, mk 1 suburban coaches.
I'd have more if I had the room.
Thanks.

P
Patrick H.
Impulse buy and glad I did..!

Wasn't really after a class 31 being a western region modeller but the more I read, and knowing Accurascale great reputation, the more I considered I could fit one in. Striking model, glad I purchased.

J
John C.

I ordered from your pages on a Sunday and it arrived at my house on Tuesday morning. Great service again,the engine runs so smoothly and highly accurate to the real thing !!!! .a very nice model to go with my blue 31248 version.

A
Alan W.
stunning!!

The level of detail is exceptional, very high quality finish. Having run it in on a rolling road, the loco performs faultlessly. Overall, delighted with the class 31.

A
Adam F.
Class 21

An excellent model that looks and sounds fantastic

User picture
S
Stuart C.
Stunning Class 31

Accurascale Class 31's are stunning locos and D5803 in Green with a full yellow panel was an excellent choice by accurascale as I have seen images of this loco with full yellow panel from 1969 to 1973 so a good choice.

J
John C.
Too nice to unwrap

A beautifully crafted piece of art. It’s almost too good to take out the box and like a precious work of art should be handled wearing white gloves. An astonishing achievement and very well done indeed.

A
Alec

Great model eith fine detail. Super runner.

G
Graham S.
Class 31 D5803

Arrived complete , undamaged & no bits in box , lovely model that captures the class 31 look , ran in (30 mins each way) and is as silent and smooth as my 5544 , another excellent model ,just waiting for NRM exclusive to complete my trio, and my three class 50s.
Regards G Stephenson

C
Craig H.
Perfection

This is the second accurascale model I have brought and both are top quality. Perfect detailing, the more you look at it the more you see.smooth running straight out the box.This how a model should be made.Excellent.
